| Model |
Voltaj (v) |
Güç (kw) |
Devir (rpm) |
Debi (m³/h) |
|---|---|---|---|---|
| AVS-DKF-30X15 | 230 | 90 | 2650 | 650 |
| AVS-DKF-40X20A | 230 | 150 | 2400 | 950 |
| AVS-DKF-40X20B | 230 | 200 | 2450 | 1250 |
| AVS-DKF-50X25 | 230 | 250 | 2600 | 1900 |
| AVS-DKF-60X30 | 230 | 140 | 1440 | 2100 |
| AVS-DKF-60X35A | 230 | 160 | 1400 | 2700 |
| AVS-DKF-60X35B | 230 | 220 | 1420 | 3400 |
| AVS-DKF-70X40A | 230 | 500 | 1450 | 4800 |
| AVS-DKF-70X40B | 230 | 750 | 1450 | 6050 |
| AVS-DKF-80X50 | 230/380 | 950 | 1360 | 8500 |
| AVS-DKF-100X50 | 230/380 | 1200 | 1360 | 10500 |

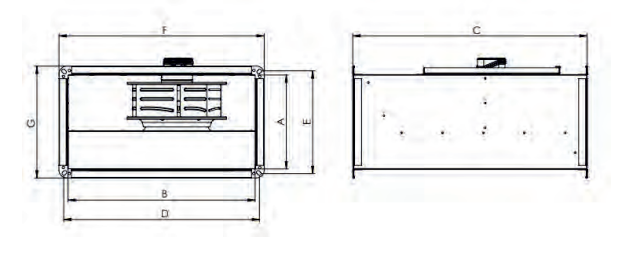

| Model | A (mm) | B (mm) | C1 (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|
| AVS-DKF-30X15 | 150mm | 300mm | 400mm | 325mm | 175mm | 350mm | 200mm |
| AVS-DKF-40X20A | 200mm | 400mm | 500mm | 425mm | 225mm | 450mm | 250mm |
| AVS-DKF-40X20B | 250mm | 500mm | 565mm | 525mm | 275mm | 550mm | 300mm |
| AVS-DKF-50X25 | 300mm | 600mm | 740mm | 625mm | 330mm | 650mm | 350mm |
| AVS-DKF-60X30 | 350mm | 600mm | 740mm | 625mm | 375mm | 650mm | 400mm |
| AVS-DKF-60X35A | 400mm | 700mm | 790mm | 725mm | 425mm | 750mm | 450mm |
| AVS-DKF-60X35B | 500mm | 800mm | 900mm | 830mm | 530mm | 860mm | 560mm |
| AVS-DKF-70X40A | 500mm | 1000mm | 1000mm | 1030mm | 530mm | 1060mm | 560mm |
| AVS-DKF-70X40B | - | - | - | - | - | - | - |
| AVS-DKF-80X50 | - | - | - | - | - | - | - |
| AVS-DKF-100X50 | - | - | - | - | - | - | - |
Yuvarlak kanal tipi fanlar, yuvarlak kesitli kanal sistemlerine doğrudan entegre edilerek dengeli v...
